GSK Montrose – Three-Stage Pharmaceutical Vent Scrubbing System

Integrated Packed Tower Scrubbing and Activated Carbon Filtration for Pharmaceutical LEV and Reactor Vents

Project Overview

ERG Air Pollution Control supplied a three-stage gas treatment package for GSK’s pharmaceutical manufacturing facility in Montrose, Scotland, working for Doosan Babcock.

Delivered in 2016, the project involved an integrated scrubbing and filtration system designed for the treatment of local exhaust ventilation (LEV) and process reactor vent gases.

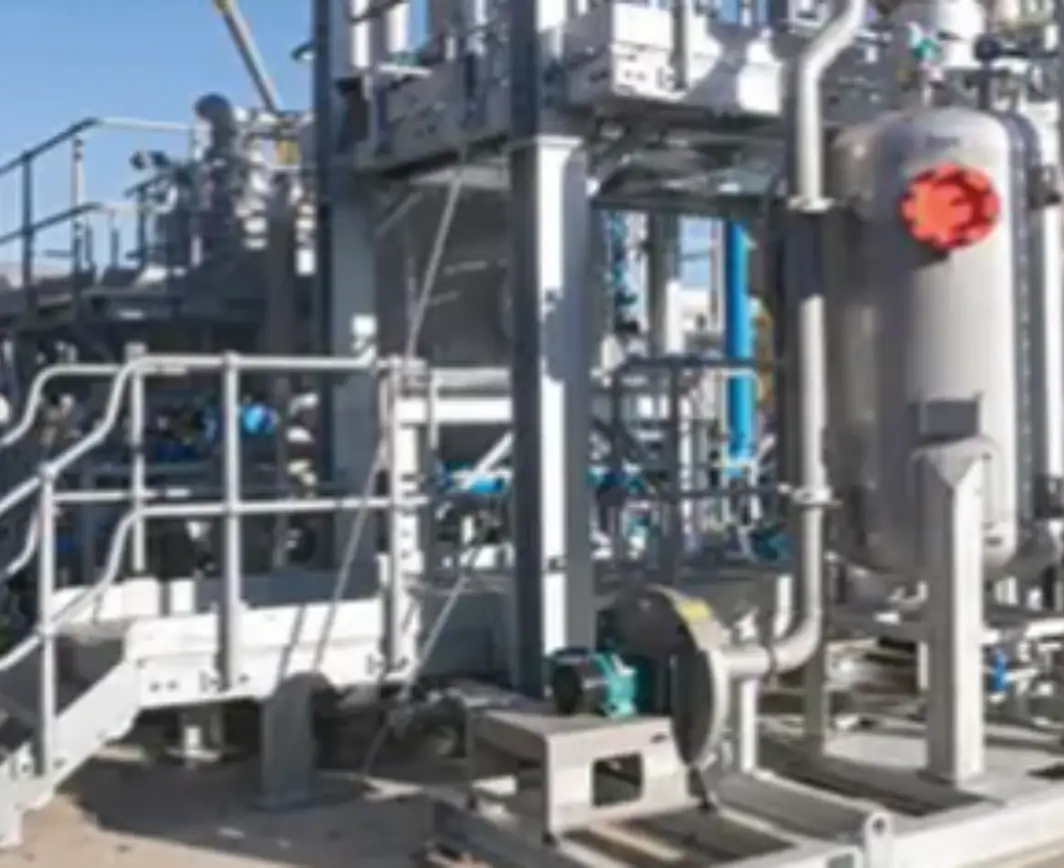

The installation combined two packed tower scrubbers constructed from different materials with a downstream activated carbon filtration stage, supported by fans, pumps, pipework, ductwork and a dedicated access structure.

The treatment arrangement comprised a 316 stainless steel packed tower scrubber, an ECTFE/GRP packed tower scrubber and a 316 stainless steel carbon filter.

This combination demonstrates ERG’s ability to engineer multi-stage gas treatment systems incorporating different materials and technologies within a single integrated package.

The Challenge

Pharmaceutical manufacturing facilities generate process ventilation streams from a variety of production activities, including reactor operations and local exhaust ventilation systems.

These gas streams can present complex treatment requirements, particularly where different contaminants or operating conditions require more than one abatement technology.

At GSK’s Montrose facility, the project required a three-stage treatment package for LEV and reactor vent gases.

The engineering challenge involved integrating multiple treatment stages while selecting appropriate materials of construction for the individual equipment items.

The system also required supporting mechanical equipment, including fans, pumps, connecting pipework and ductwork, together with an access structure for inspection and maintenance.

Combining these components into a coordinated installation required careful consideration of equipment arrangement, gas flow, liquid circulation and accessibility.

ERG’s Solution

ERG supplied an integrated three-stage scrubbing and filtration package incorporating two packed tower scrubbers followed by an activated carbon filter.

Stage 1 – 316 Stainless Steel Packed Tower Scrubber

The first treatment stage comprised a packed tower scrubber manufactured from 316 stainless steel.

Packed tower scrubbers use gas-liquid contact to transfer suitable contaminants from the gas stream into a circulating scrubbing liquid.

The packed bed provides a large contact surface area, supporting mass transfer between the gas and liquid phases.

The use of 316 stainless steel provides a robust material option for industrial process equipment, subject to the chemical and operating conditions of the application.

Stage 2 – ECTFE/GRP Packed Tower Scrubber

The second stage incorporated a packed tower scrubber constructed from ECTFE/GRP.

ECTFE (ethylene chlorotrifluoroethylene) is a fluoropolymer recognised for its chemical resistance, while glass-reinforced plastic provides structural strength and corrosion-resistant equipment construction.

Combining these materials allows equipment to be engineered for applications where chemical compatibility is an important design consideration.

The second packed tower provides an additional wet scrubbing stage within the overall gas treatment arrangement.

Stage 3 – 316 Stainless Steel Activated Carbon Filter

The final treatment stage comprised a 316 stainless steel activated carbon filter.

Activated carbon filtration is used to remove suitable residual contaminants from gas streams through adsorption onto the extensive internal surface area of the carbon.

In a multi-stage treatment system, carbon filtration can provide a downstream polishing stage following upstream scrubbing, depending on the contaminants and operating conditions.

The GSK installation combines wet scrubbing and adsorption technologies within a single treatment package.

Integrated Mechanical and Access Equipment

ERG’s equipment scope also included fans, pumps, pipework, ductwork and an access structure.

The fans provide the gas movement required through the treatment system, while the pumps support liquid circulation within the wet scrubbing stages.

Interconnecting pipework and ductwork link the individual treatment components, creating an integrated process arrangement.

The access structure provides platforms and safe physical access to elevated equipment locations for inspection and maintenance.

Together, these components form a complete engineered gas treatment package rather than a collection of standalone scrubbers.

Technical Highlights

ParameterProject specification
ClientDoosan Babcock for GSK
End userGSK
LocationMontrose, Scotland
IndustryPharmaceutical manufacturing
ApplicationLEV and reactor vent scrubbing
Treatment arrangementThree-stage scrubber package
Stage 1316 stainless steel packed tower
Stage 2ECTFE/GRP packed tower
Stage 3316 stainless steel carbon filter
Supporting equipmentFans and pumps
ConnectionsPipework and ductwork
AccessDedicated access structure
Year delivered2016

Engineering Benefits

Three-stage treatment: The combination of two packed tower scrubbers and a carbon filter provides multiple treatment stages within one integrated gas abatement system.

Combined technologies: Wet scrubbing and activated carbon adsorption offer complementary treatment mechanisms for suitable process gas contaminants.

Material selection: The use of 316 stainless steel and ECTFE/GRP demonstrates the ability to specify different construction materials for individual treatment stages.

Integrated gas handling: Fans and connecting ductwork support the movement of process gases through the treatment arrangement.

Liquid circulation: Pumps and associated pipework provide the supporting infrastructure required for wet scrubbing operation.

Maintenance accessibility: The dedicated access structure supports inspection and servicing of elevated equipment.

Engineered package: Integration of the principal treatment and supporting equipment provides a coordinated solution for pharmaceutical process ventilation.

Supporting Pharmaceutical Air Pollution Control

Pharmaceutical manufacturing processes can generate complex emissions that require careful assessment before selecting an appropriate gas treatment technology.

Local exhaust ventilation systems capture airborne contaminants at source, while reactor vent systems manage gases released during pharmaceutical production operations.

Depending on the process, contaminants may include acid gases, alkaline gases, solvent vapours or other volatile compounds.

Different contaminants have different physical and chemical properties, meaning that a single treatment method may not always be appropriate.

Wet packed tower scrubbing provides a treatment option for suitable soluble or chemically reactive gases, while activated carbon adsorption can be used for appropriate residual vapours and other adsorbable contaminants.

Combining these technologies enables engineers to develop multi-stage treatment arrangements based on the characteristics of the gas stream.

Materials selection is equally important.

Stainless steel, GRP and fluoropolymer-lined equipment offer different characteristics in terms of chemical resistance, mechanical strength and suitability for particular process conditions.

The GSK Montrose installation illustrates this approach through its use of two packed tower scrubbers with different materials of construction, followed by stainless steel activated carbon filtration.

The supporting fans, pumps, pipework, ductwork and access structure demonstrate the wider engineering considerations involved in integrating industrial emissions control equipment into an operational pharmaceutical facility.

ERG’s Expertise in Pharmaceutical Vent Gas Treatment

ERG Air Pollution Control has extensive experience designing, supplying and integrating specialist gas treatment systems for pharmaceutical, chemical and industrial manufacturing applications.

Its technologies include packed tower scrubbers, Venturi scrubbers, activated carbon filtration, thermal oxidation and other specialist air pollution control equipment.

The GSK Montrose project demonstrates ERG’s capability to combine different abatement technologies and materials within a coordinated multi-stage treatment package.

It also highlights the importance of integrating gas treatment equipment with the associated mechanical infrastructure required for operation, inspection and maintenance.

For pharmaceutical manufacturers reviewing LEV emissions, reactor vent treatment or existing gas abatement equipment, ERG can assess the process requirements and develop suitable engineered solutions.

For further information about pharmaceutical vent scrubbing, multi-stage gas treatment systems, packed tower scrubbers or activated carbon filtration, contact ERG Air Pollution Control.
