Medical Supplies Sector

Ethanol Vapour Scrubbing for Medical Supplies Manufacturing

Packed Tower Scrubber System for Ostomy Bag Production – Lithuania

Project Overview

ERG Air Pollution Control supplied a packed tower scrubbing system for a confidential medical supplies manufacturer in Lithuania, designed to treat ethanol vapour extracted from an ostomy bag manufacturing process.

Delivered in 2021, the project involved the treatment of a process ventilation stream containing ethanol, a volatile organic compound (VOC) commonly used in industrial manufacturing applications.

The system was designed to handle an airflow of 7,200 m³/h and achieve 93% ethanol removal, providing a dedicated vapour treatment solution for the manufacturing facility.

ERG’s equipment package incorporated a packed tower scrubber, subcooler and discharge stack, supported by fans, ductwork, skid-mounted pumps, a heat exchanger, instrumentation and a control panel.

The installation demonstrates how wet scrubbing technology can be integrated with gas cooling and liquid circulation equipment to provide an engineered emissions treatment solution for specialist manufacturing processes.

The Challenge

Medical supplies manufacturing can involve the use of solvents and other volatile substances during production. Where ethanol is used, vapour released during manufacturing may need to be captured and treated before discharge to atmosphere.

At the Lithuanian facility, ethanol vapour was extracted from the ostomy bag manufacturing process, creating a requirement for a dedicated treatment system capable of handling the process ventilation airflow.

With a design airflow of 7,200 m³/h, the system needed to provide effective contact between the contaminated gas stream and scrubbing liquid to achieve the specified ethanol removal performance.

The project required a complete treatment package incorporating gas handling, wet scrubbing, cooling, liquid circulation and associated process controls.

The selection of suitable equipment and materials was important to provide a robust system appropriate for the operating environment and the contaminants being treated.

ERG’s Solution

ERG supplied a packed tower scrubber and subcooler arrangement designed to remove ethanol vapour from the extracted process air.

Packed tower wet scrubbing uses contact between a gas stream and circulating liquid to transfer soluble contaminants from the gas phase into the liquid phase.

Inside the scrubber, packing media provides an extensive contact surface, encouraging interaction between the contaminated air and the scrubbing liquid.

The system incorporated a subcooler and heat exchanger to support the thermal management of the scrubbing process. Cooling can improve the absorption of volatile compounds by influencing their equilibrium between the gas and liquid phases.

The scrubber vessel was manufactured from glass-reinforced plastic (GRP), with the project specification identifying BS EN 13121-3 and PED Sound Engineering Practice (SEP) as applicable design references.

ERG also supplied the associated fans and ductwork to transport the contaminated process air through the treatment system and onwards to the discharge stack.

A skid-mounted liquid circulation package incorporated pumps, a heat exchanger and instrumentation, providing the supporting equipment required for the wet scrubbing process.

The inclusion of a dedicated control panel enabled the principal equipment to be operated and monitored as an integrated treatment package.

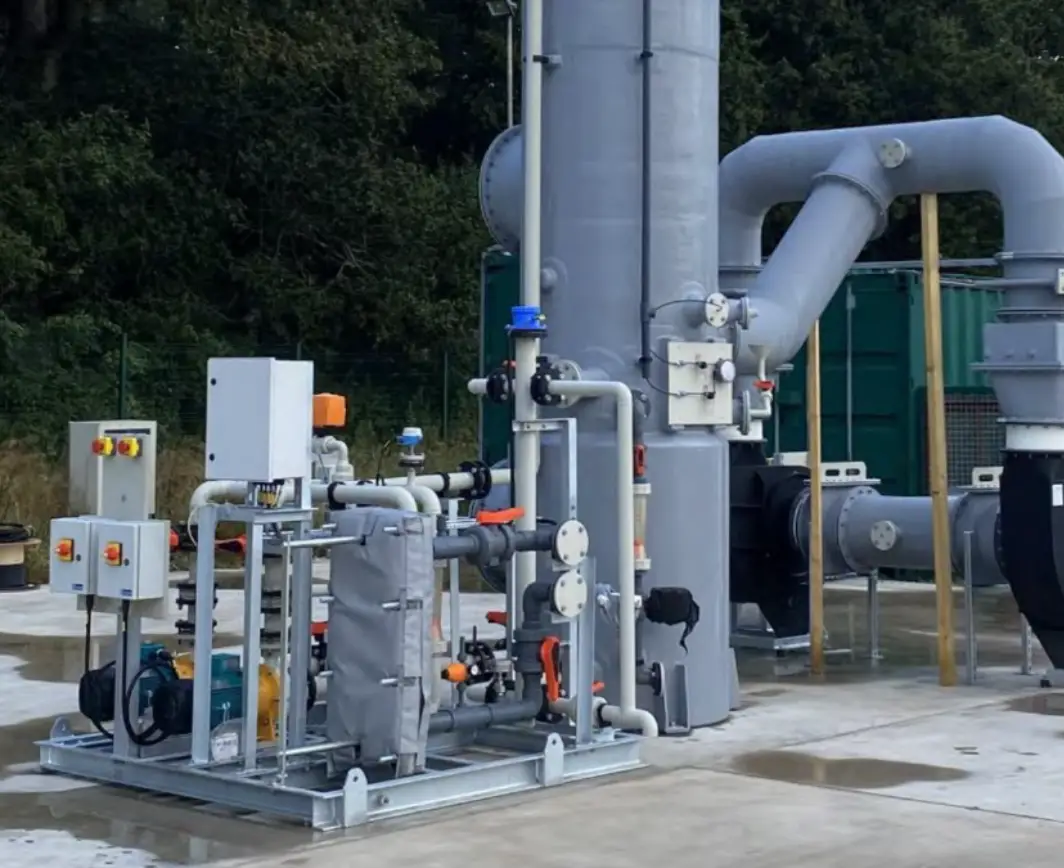

The complete system was trial assembled at ERG’s works, as illustrated in the project photographs, demonstrating the arrangement of the scrubber vessel, circulation skid, fan and associated equipment before delivery.

Technical Highlights

ParameterProject specification
ClientConfidential medical supplies manufacturer
LocationLithuania
IndustryMedical supplies manufacturing
ApplicationEthanol vapour treatment from ostomy bag manufacturing
ContaminantEthanol vapour (VOC)
Gas airflow7,200 m³/h
Ethanol removal93%
Primary treatmentPacked tower wet scrubber
Additional treatment equipmentSubcooler
Vessel constructionGRP
Design referencesGenerally to BS EN 13121-3; PED SEP
Gas handlingFans and ductwork
Liquid circulationSkid-mounted pumps
Thermal managementHeat exchanger
InstrumentationProcess instrumentation
ControlsDedicated control panel
DischargeIntegrated stack
Year delivered2021

Engineering Benefits

Ethanol vapour removal: The system was designed to achieve 93% ethanol removal from the manufacturing process ventilation stream.

High-volume air treatment: The packed tower scrubber provides treatment for a process airflow of 7,200 m³/h.

Integrated cooling: The inclusion of a subcooler and heat exchanger supports the thermal conditions required for the scrubbing process.

Corrosion-resistant construction: GRP vessel construction provides a durable material option for industrial wet scrubbing applications.

Skid-mounted equipment: The pump and heat exchanger package provides a practical arrangement for liquid circulation and associated instrumentation.

Complete gas handling system: Fans, ductwork and a discharge stack form part of the overall emissions treatment package.

Integrated controls: A dedicated control panel supports operation of the scrubbing and auxiliary equipment.

Pre-delivery assembly: Trial assembly at ERG’s manufacturing facility allowed the principal equipment arrangement to be demonstrated before shipment.

Supporting Cleaner Medical Manufacturing

Manufacturers of medical products may use volatile substances during production, creating a need for effective process ventilation and emissions treatment.

Ethanol vapour is one example of a contaminant that can be generated during manufacturing operations and may require abatement depending on the process conditions and environmental requirements.

Wet scrubbing can provide an appropriate treatment approach where the contaminant is sufficiently soluble in the selected scrubbing liquid and the operating conditions support effective mass transfer.

The combination of packed tower technology, cooling equipment and liquid circulation allows the treatment process to be engineered around the specific gas flow and contaminant removal requirements.

For this medical supplies manufacturing project, ERG supplied a complete package designed to achieve 93% ethanol removal while treating 7,200 m³/h of extracted process air.

The installation demonstrates the application of industrial air pollution control technology within a specialist medical manufacturing environment.

ERG’s Expertise in VOC and Solvent Vapour Treatment

ERG Air Pollution Control designs and supplies industrial emissions treatment systems for a wide range of manufacturing and process applications.

Its capabilities include packed tower scrubbers, gas cooling systems, solvent vapour treatment, thermal oxidation, process ventilation and integrated gas cleaning equipment.

The Lithuanian project provides a reference for ERG’s ability to develop a complete wet scrubbing package for ethanol vapour treatment, incorporating the principal scrubber vessel together with cooling, circulation, gas handling and control equipment.

For manufacturers seeking to reduce solvent vapour emissions or upgrade existing air pollution control equipment, ERG can assess the process requirements and recommend suitable treatment technologies.

For further information about ethanol vapour treatment, VOC abatement, packed tower scrubbers or industrial emissions control, contact ERG Air Pollution Control.
