Pfizer – V-tex®
VOC Scrubber for Pharmaceutical Glovebox Ventilation
Compact Wet Scrubbing System for VOC Removal at Pfizer’s Inchera Facility, Ireland
Project Overview
ERG Air Pollution Control supplied a compact V-tex
®
wet scrubbing system for Pfizer’s pharmaceutical manufacturing facility at Inchera, Ireland.
Delivered in 2004, the project involved a specialist gas treatment package designed to remove volatile organic compounds (VOCs) from air extracted from a clean glovebox.

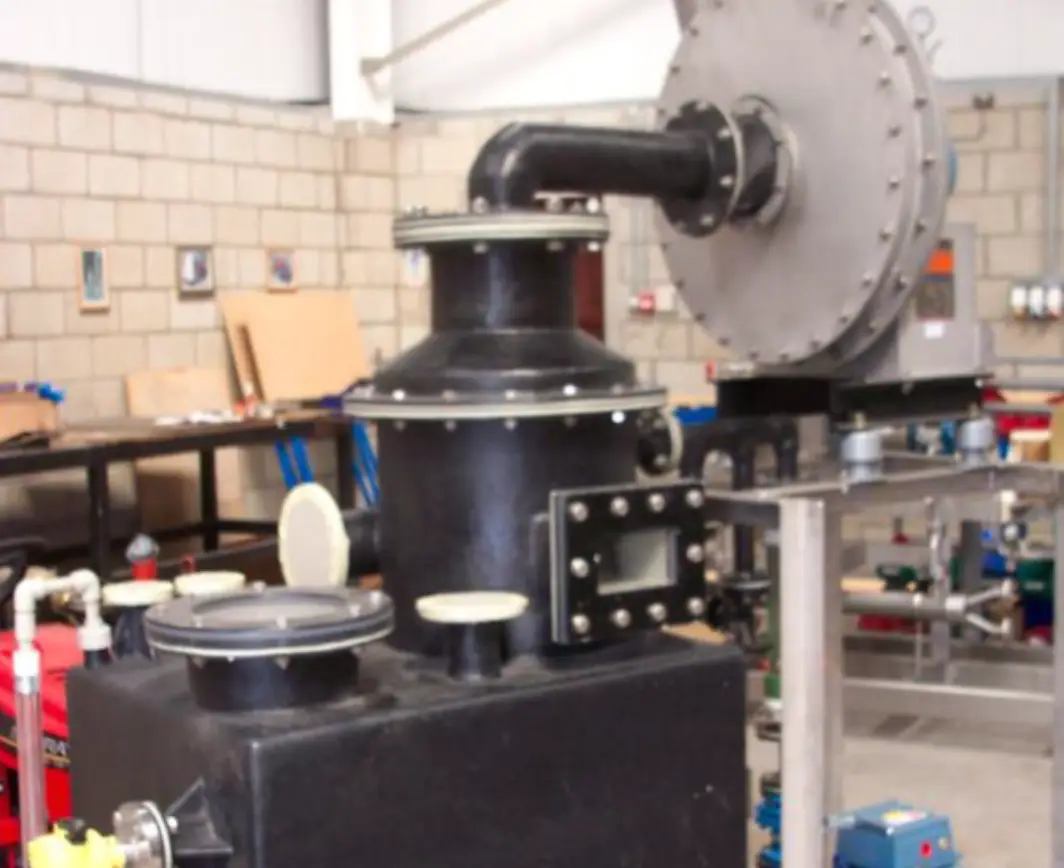

The installation incorporated a 400 mm diameter polypropylene/glass-reinforced plastic (PP/GRP) V-tex
®
batch scrubber, designed to treat gas flow rates of up to 120 m³/h.
The system used a bleach-based scrubbing process to treat the extracted air, with the original project documentation recording a VOC removal figure of greater than 98.5%.
The project demonstrates ERG’s ability to provide compact, purpose-designed air pollution control equipment for specialist pharmaceutical manufacturing applications where relatively low gas volumes require effective contaminant treatment.
The Challenge
Pharmaceutical manufacturing processes frequently require enclosed working environments to support product quality, process control and operator protection.
Clean gloveboxes provide controlled environments for specialist manufacturing and handling operations. However, depending on the materials and processes involved, extracted ventilation air may contain volatile organic compounds that require treatment before discharge.
At Pfizer’s Inchera facility, the application involved treating air extracted from a clean glovebox.
The project required a compact VOC abatement system capable of handling a gas flow rate of up to 120 m³/h while providing effective contaminant removal.
Unlike larger industrial exhaust treatment applications, glovebox ventilation can involve relatively small gas volumes, making equipment size, integration and suitability for the operating conditions important engineering considerations.
The selected solution therefore needed to combine effective gas-liquid contact with a practical equipment arrangement suitable for the pharmaceutical manufacturing environment.
ERG’s Solution
ERG supplied a 400 mm diameter PP/GRP V-tex
®
batch scrubber incorporating bleach-based wet scrubbing for VOC treatment.
The V-tex
®
system uses an intensive gas-liquid contacting arrangement to promote mass transfer between the contaminated gas stream and the circulating scrubbing liquid.
Within a wet scrubbing process, suitable contaminants are transferred from the gas phase into the liquid phase, where they may be absorbed or chemically reacted depending on their properties and the selected scrubbing chemistry.
For the Pfizer application, the system was specified to treat glovebox exhaust air using bleach as the scrubbing medium.
The compact scrubber arrangement was designed for a gas flow rate of up to 120 m³/h.
V-tex®
Gas-Liquid Contacting Technology
ERG’s V-tex
®
technology is designed to provide intensive contact between gas and liquid within a compact treatment unit.
This approach is particularly relevant where process requirements call for specialist wet scrubbing equipment without the footprint associated with larger conventional treatment systems.
For the Pfizer installation, the 400 mm diameter V-tex
®
scrubber provided the principal gas treatment stage.
PP/GRP Construction
The scrubber incorporated polypropylene and glass-reinforced plastic construction.
These materials are widely used in chemical processing and wet scrubbing applications because of their corrosion-resistant characteristics.
Material compatibility remains dependent on the chemicals, concentrations and operating conditions involved, but PP/GRP construction provides a practical option for appropriately specified chemical scrubbing equipment.
Batch Scrubbing Arrangement
The project documentation identifies the system as a batch scrubber.
Batch operation allows treatment liquid to be managed within a defined operating cycle rather than necessarily relying on continuous replacement of the entire liquid inventory.
The detailed chemical dosing, liquor management and operating sequence for this particular installation are not specified in the original project sheet.
Technical Highlights
| Parameter |
Project specification |
| Client |
Pfizer |
| Site |
Inchera, Ireland |
| Industry |
Pharmaceutical manufacturing |
| Application |
VOC removal from clean glovebox exhaust air |
| Technology |
ERG V-tex®
wet scrubbing |
| Equipment |
Batch scrubber |
| Scrubber diameter |
400 mm |
| Construction |
PP/GRP |
| Scrubbing medium |
Bleach |
| Gas flow rate |
Up to 120 m³/h |
| VOC removal |
Greater than 98.5% (project sheet figure) |
| Project value |
£40,000 |
| Year delivered |
2004 |
Engineering Benefits
Compact treatment package: The 400 mm diameter scrubber provides a relatively small-scale gas treatment arrangement for specialist pharmaceutical ventilation applications.
VOC abatement: The project sheet records greater than 98.5% VOC removal for the specified application.
Intensive gas-liquid contact: V-tex
®
technology promotes interaction between contaminated gas and scrubbing liquid within a compact unit.
Chemical scrubbing: The use of bleach provides a chemically reactive scrubbing medium for suitable contaminants.
Corrosion-resistant construction: PP/GRP materials offer advantages for appropriately specified chemical wet scrubbing applications.
Low-volume gas treatment: The system demonstrates ERG’s capability to engineer abatement equipment for gas flow rates substantially smaller than those associated with major industrial exhaust systems.
Specialist pharmaceutical application: The installation provides an example of gas treatment equipment developed for clean glovebox ventilation rather than conventional large-scale process extraction.
Supporting VOC Control in Pharmaceutical Manufacturing
Volatile organic compounds can arise from a wide range of pharmaceutical manufacturing and handling activities, including processes involving organic solvents and specialist chemical materials.
Where VOC-containing air is extracted from enclosed process equipment, suitable abatement may be required to control emissions.
The selection of treatment technology depends on several factors, including contaminant composition, gas flow rate, concentration, temperature, moisture content and the required removal efficiency.
Wet scrubbing can provide an effective treatment route for VOCs that are sufficiently soluble or chemically reactive with the selected scrubbing liquid.
Other VOCs may require alternative treatment methods, including activated carbon adsorption, thermal oxidation or combinations of technologies.
For smaller process ventilation systems, equipment footprint and integration with existing plant can be particularly important.
The Pfizer Inchera installation demonstrates the application of compact V-tex
®
wet scrubbing equipment to a pharmaceutical glovebox exhaust stream.
The use of PP/GRP construction and bleach-based treatment illustrates how scrubber materials and liquid chemistry can be selected to suit a defined process application.
ERG’s Expertise in Pharmaceutical VOC Abatement
ERG Air Pollution Control has extensive experience supplying specialist gas treatment systems for pharmaceutical, chemical and industrial manufacturing applications.
Its technology portfolio includes V-tex
®
scrubbers, packed tower scrubbers, Venturi scrubbers, activated carbon filtration and thermal oxidation systems.
The Pfizer Inchera project demonstrates ERG’s capability to provide a compact, purpose-designed VOC treatment solution for a specialist pharmaceutical ventilation requirement.
From small process exhaust streams to larger integrated emissions control installations, ERG develops treatment systems around the characteristics of the process gas and the required environmental performance.
For further information about V-tex®
scrubbers, pharmaceutical VOC abatement, glovebox exhaust treatment or specialist wet scrubbing systems, contact ERG Air Pollution Control.
